Investigating the 2016 Italy Earthquake
Investigating the 2016 Italy Earthquake
BBC Video (15 mins)
© British Broadcasting Corporation (BBC)
Pupil Activity
- As a class watch the video clip.
- While you watch note down 3 important facts.
- In a small group decide on which five facts you think are most important in this news story.
In this and the next edition of GITN we are going to investigate where certain hazards such as earthquakes and volcanoes are located.
Image: Italy relief location map - Eric Gaba/Sting & NordNordWest © Wikimedia Commons under Creative Commons Attribution-Share Alike 3.0 Unported
Download Map - Click below
On the 24th of August 2016 an earthquake hit Central Italy.
The earthquake hit an area in the Appenine Mountains which run down the middle of Italy.
- Its epicentre was close to a town called Amatrice.
- It was a shallow earthquake only 4km deep.

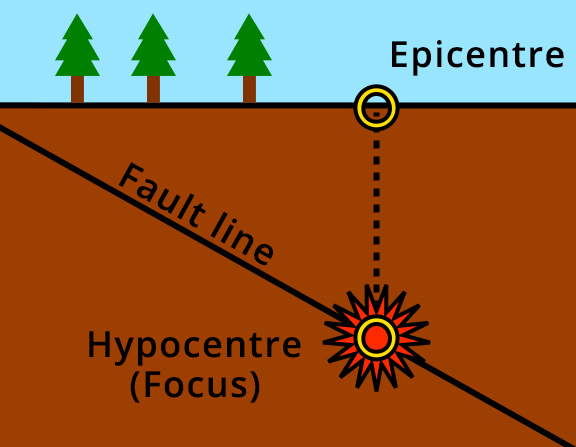

Image: Epicentre Diagram - Ansate / Sam Hocevar © Wikimedia Commons under Creative Commons Attribution-Share Alike 1.0 Generic
- As of the start of September 2016, 295 people are known to have been killed.
- 396 people were also seriously injured as a result of the earthquake.

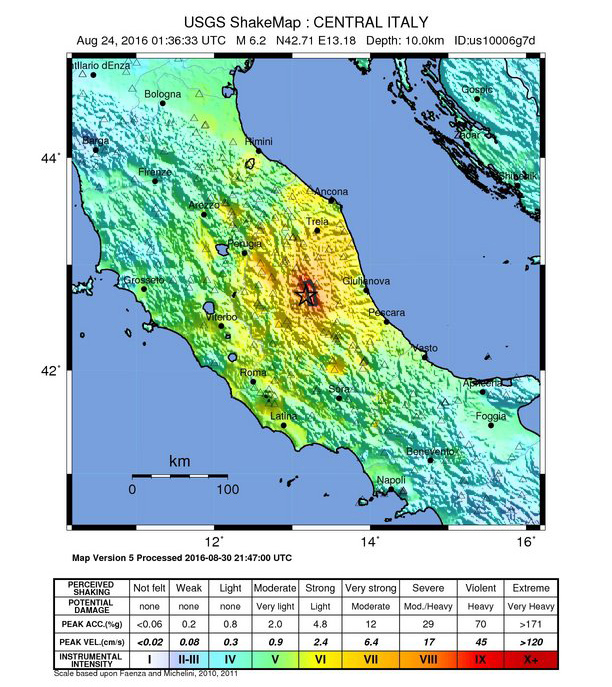

Image: Shakemap Earthquake 24 Aug 2016 Italy - United States Geological Survey © Public Domain
Download Map - Click below
- An earthquake happens when rocks within the earth move.
- Rocks move along a line of weakness called a fault.
- Energy moves outwards like ripples in a pond when you throw in a stone.
- Once the energy reach the surface they spread out along the surface as surface waves; exactly like the ripples in a pond.
- Surface waves shake the ground and can cause major damage.
- The amount of the surface shaking depends on:
- The strength of the earthquake.
- How deep the earthquake is.
The Italy earthquake was measured at 6.2 on the modern earthquake magnitude scale that goes from 1-9.5; so it was not a very strong earthquake.
However it was very shallow (4km) so nearly all of the energy reached the surface and it was a long (over 20 seconds) movement so the shaking lasted a long time.

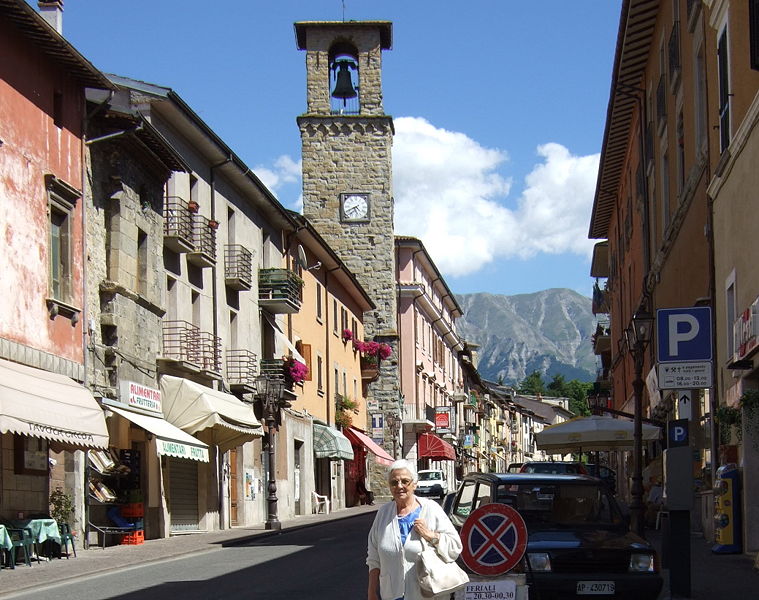

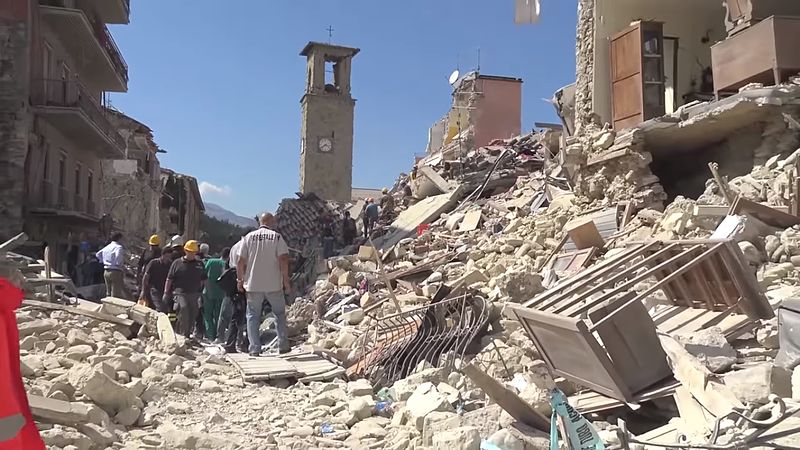

The town of Amatrice in Italy; before and after the 2016 earthquake.
Image: Amatrice - Corso - Mario1952 © Wikimedia Commons under Creative Commons Attribution-Share Alike 3.0 Unported
Image: 2016 Amatrice earthquake - Corso - Leggi il Firenzepost © Wikimedia Commons under Creative Commons Attribution-Share Alike 3.0 Unported

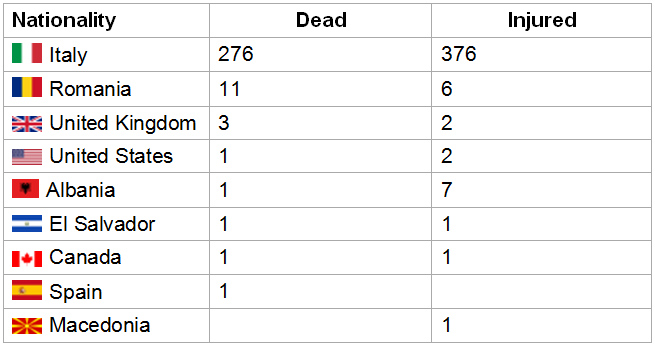

Nationalities of Victims
- The earthquake hit early in the morning when most people were still in bed.
- This region is popular with tourists who like to stay in old houses high up in the mountains.
- Some buildings in the region were not built or converted to a standard to resist earthquakes in an Italian law passed in 1974. Even a school built in 2012 might not have met the standards.

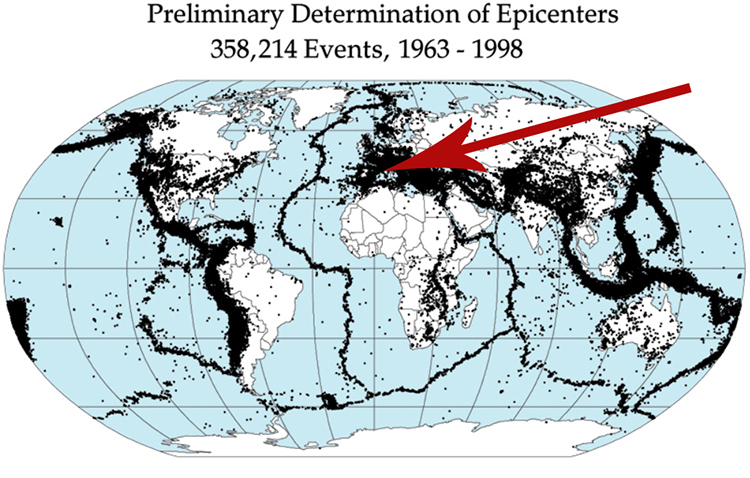

Image: Quake epicenters 1963-98 - NASA, DTAM project team © Public Domain
Look at the map above which shows individual earthquakes as a small dot.
Scientists looking at this map knew that Italy was going to have earthquakes; in the linked articles we are going to find out why.
Student Activity
5 Most
In the 5 most activity you:
- Scan the article and roughly note down what you think the 5 most important facts are to share as in a news report for the BBC.
- In a small group discuss and decide which of these facts would be the 5 most important things as a group to share in a news report for the BBC.
- Share these with the class to build up a class brainstorm.
DME
We are going to do something different over this and the next issue and carry out a DME into tectonic hazard over two editions.
Start your DME by carrying out the activities on the A3 activity sheet.
Teacher Box
The resource is designed to be used as whole class resource from the front of the classroom on the projector/interactive whiteboard.
The various graphics should be supported by teacher exposition based on the text which will not be readable in permitted time to the vast majority of pupils), following this it is ideal that the students have access to the online resource in order to work on the activity sheet (designed to be printed on A3 size paper).
Ideally these activities will be supported by the use of a network room, tablets/laptops or students own phones/devices if permitted.
However the activities are also designed to be used in a typical one hour lesson with the teacher input using the resource from the front of the classroom alongside the resource sheet.
Students can then be set a homework task to study the three articles in advance of the following lesson.
The resource and accompanying sheet is designed to support the LNF framework while giving students key geographical knowledge about places in relation to the Italy Earthquake in 2016.
Pupil Box
Either in class or at home read and complete the activities in the online resource article and in the linked articles in this edition of Geography in the News. Attempt to complete all of the activities in the resource sheet.
What you will learn:
- You will increase your knowledge about the Italy Earthquake in 2016
- You will increase your understanding of how these factors may affect human beings and human activities
- You will have you the opportunity to learn or practice important literacy and numeracy skills.
You will learn new geographical terms highlighted in purple these should be learned and added to a glossary. A glossary is a list of words and their meanings. You could have one in the back of your geography exercise book, if you have a planner it is probably a good place to keep a glossary, or you may keep a separate glossary or word book. A good glossary helps you build your vocabulary and your literacy. Research meanings using related article content, discussion or a dictionary (either online or a book).
